| Product Attribute | Attribute Value |
|---|---|
| Actuator Type | Lever |
| Contact Form | SPDT |
| Current Rating | 20 A |
| Mounting Hole Size | 0.48 In. |
| Mounting Type | Panel Mount |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Operation | ON-OFF-ON |
| Series | |
| Termination | QC Tabs |
| Type | Toggle |
| Voltage Rating | 115 VAC |
Overview

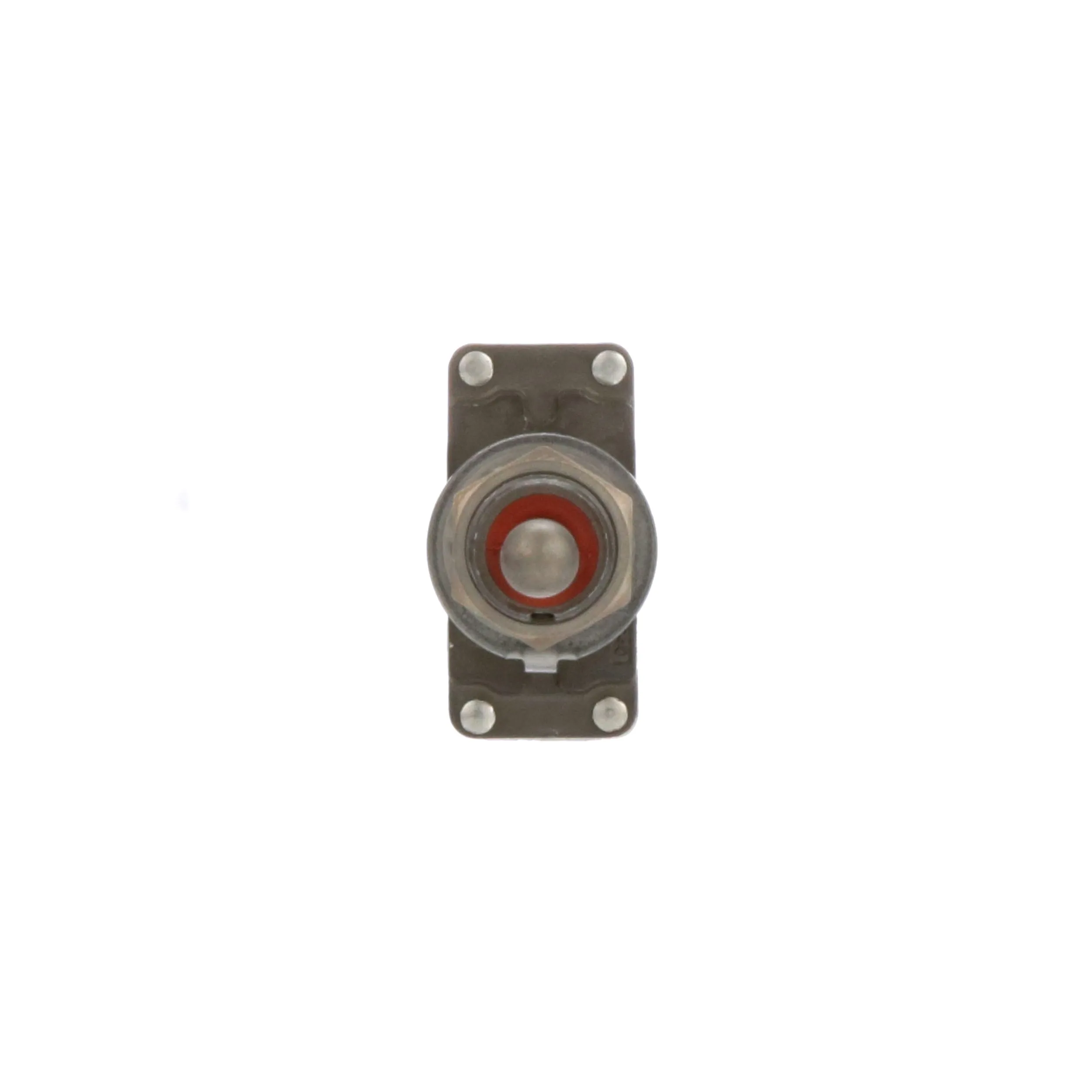

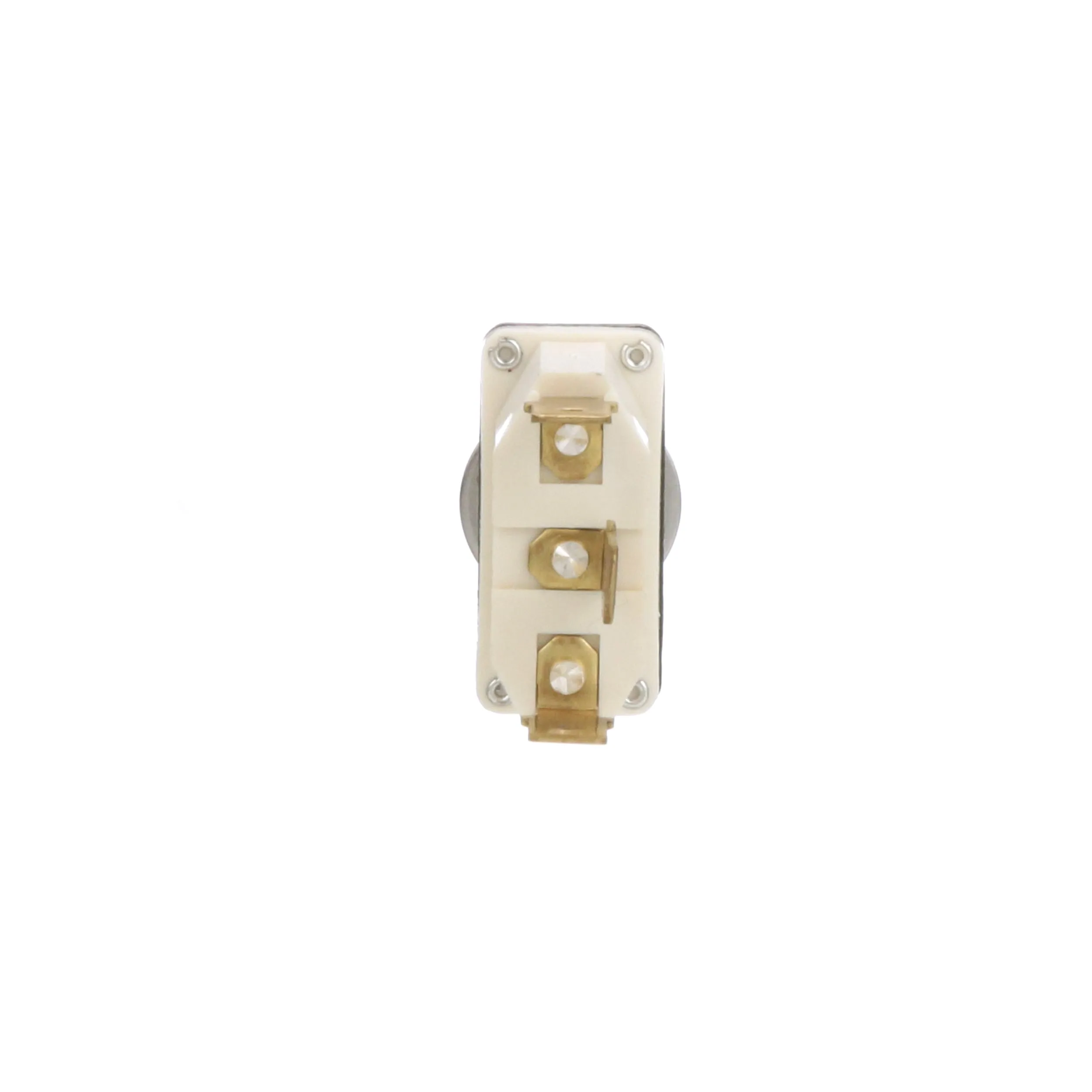

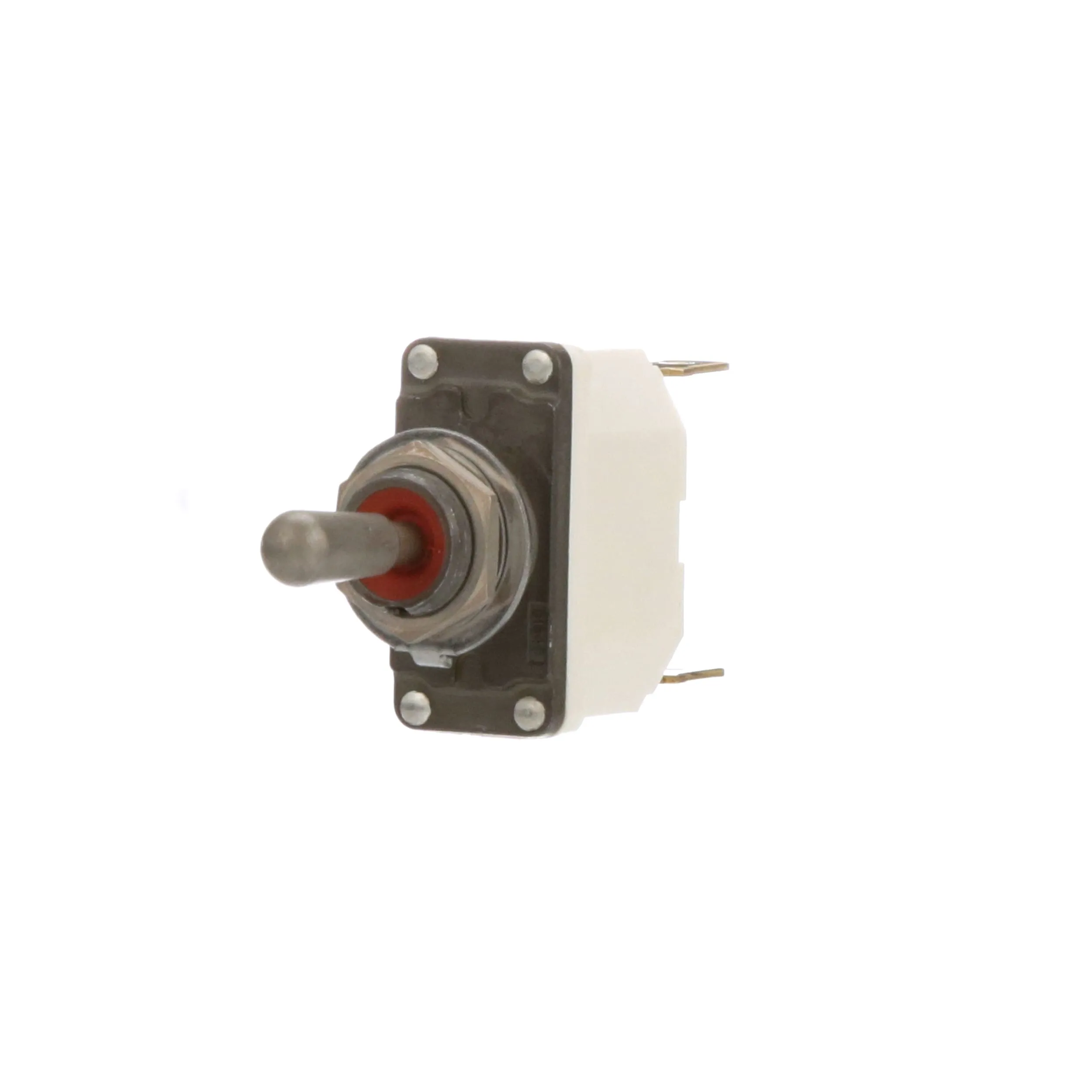

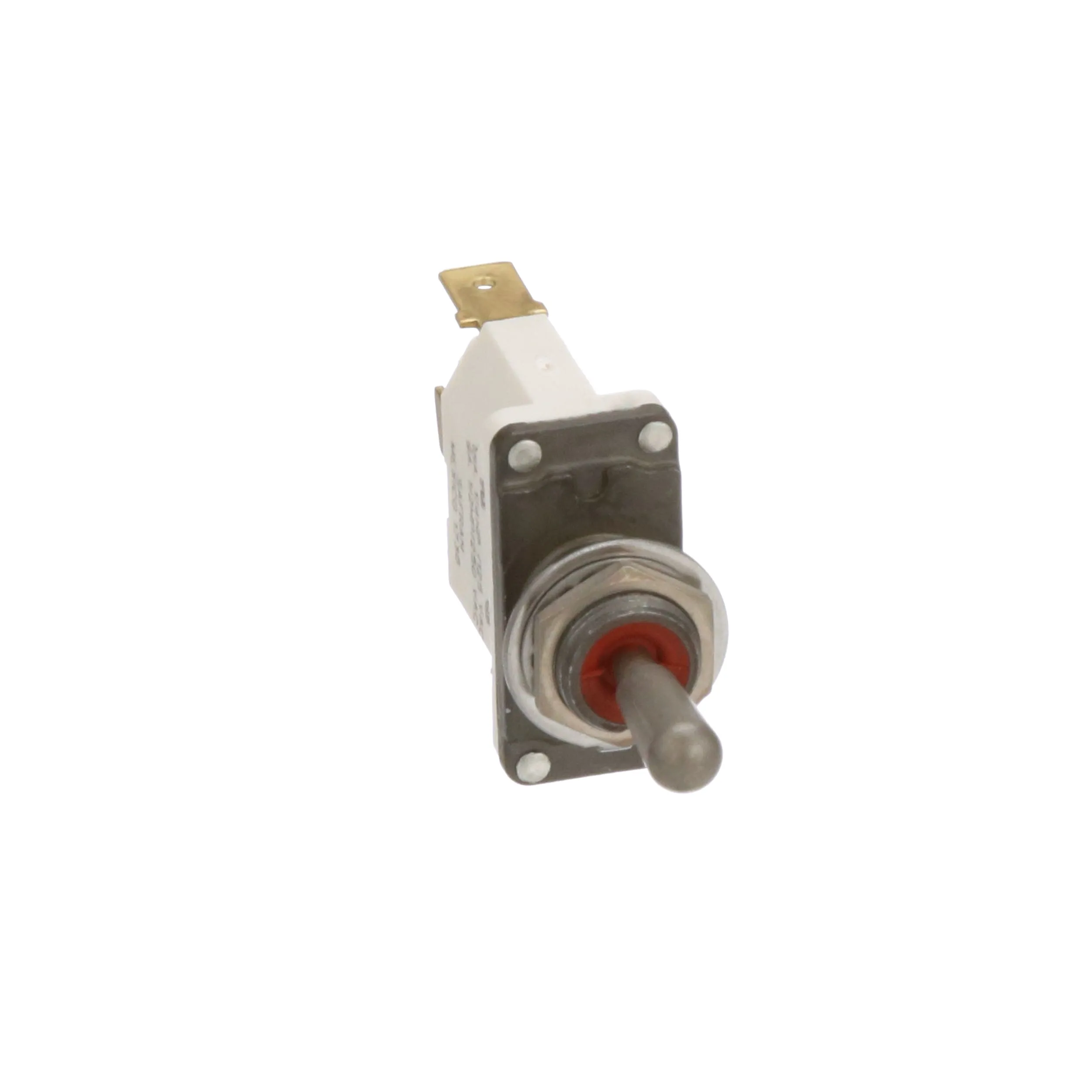

The 8530, 8531 and 8532 series toggle switches are one of the most rugged and durable on the market. They are IP68 rated and have a water tight seal that meets MIL-STD-108E. They are completely sealed against dust, moisture and other contaminants. When this matters, choose the 8530, 8531 and 8532 series toggles from Labinal.
Features:
Options/ Accessories:
